We don't sell curtains.
We sell the system
inside them.
SHISHANG empowers window covering manufacturers with a patented smart floating roller shade system — build differentiated finished products using your own fabrics, SHISHANG-approved track systems and your local manufacturing capability.
Two motors. Two panels.
Eight ways to compose a window.
A dual-output shaft drives the middle tube and the bottom bar independently. That is the whole trick — and it is patented.
What arrives in the kit.
A complete patented core system: motor, self-developed structural parts and 28 base components. You supply the fabric and the local assembly.
Dual-output shaft motor
24 mm tubular, 2 × 0.6 Nm at 40 rpm. One motor, two shafts — the middle tube and the bottom bar move independently.

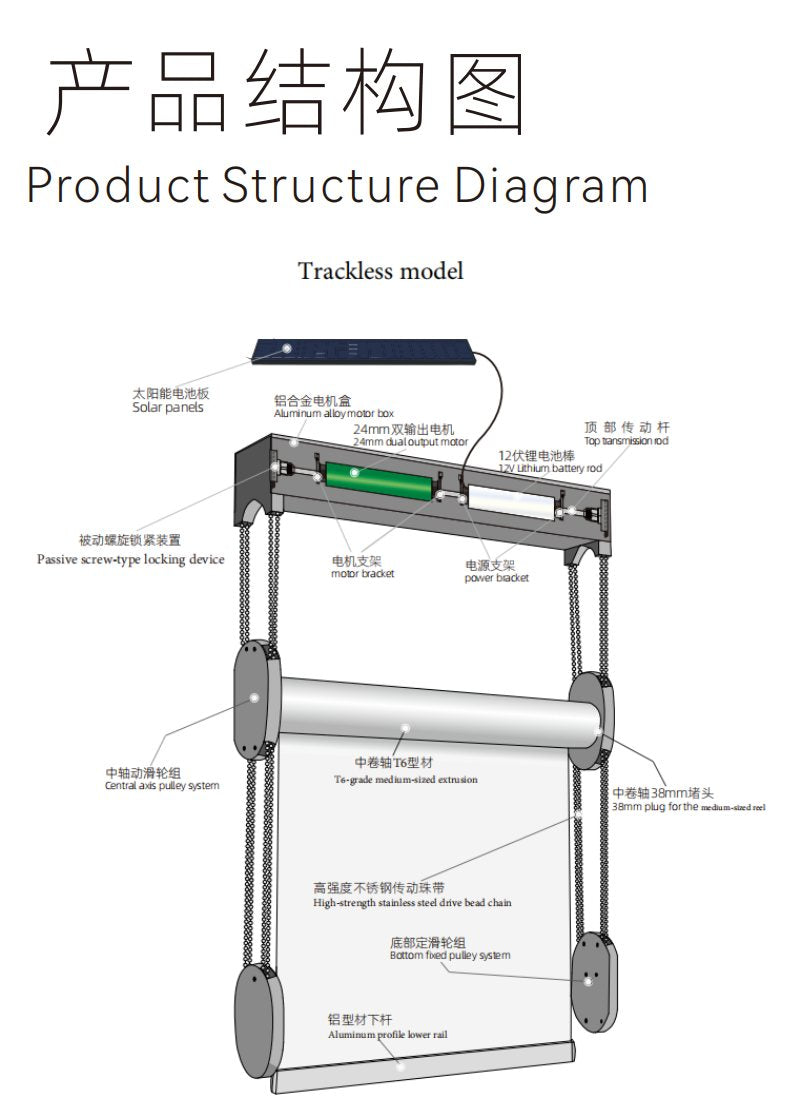

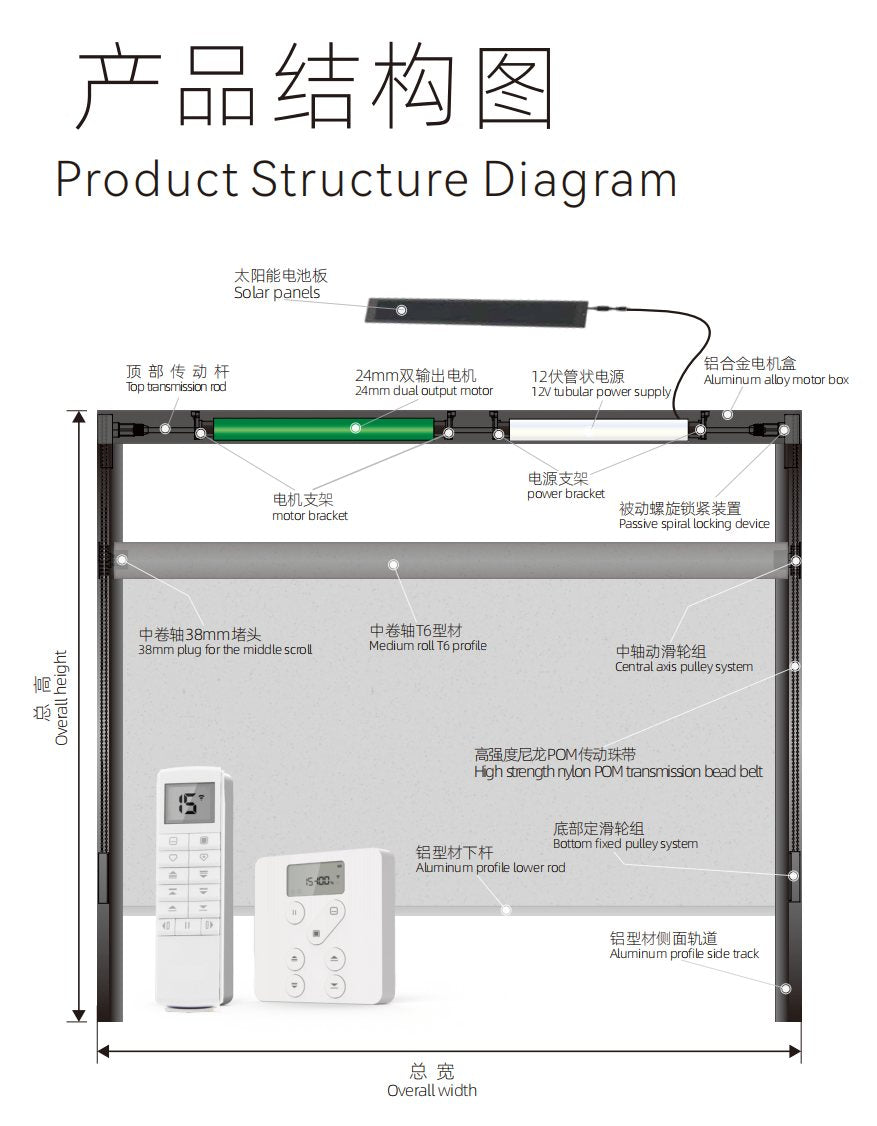

Central axis pulley system
High-strength nylon POM transmission bead belt, bottom fixed pulley, passive spiral locking device. Top transmission rod links the two axes.
Profiles & hardware
Aluminium motor box, T6 medium roll profile, side track, lower rod, 38 mm plug for the middle scroll, motor and power brackets.
12 V, three options
Adapter DC731E (12 V / 4 A), battery pack DC1277EB (12 V / 5 A) or adapter DC1277EP (12 V / 3 A). Optional solar panel.
433 MHz, 15 channels
Percentage control, multiple stop positions, motor battery check, electronic travel setting, obstacle protection, jog / continuous switch.
Fabric, track, assembly
Use your own fabric and local production. Track must be sourced from a SHISHANG-authorised maker, or produced locally under authorisation.
Five anodised aluminium finishes
Standard finishes are Matte Black, Matte White and Silver Ash. Coffee and Beige are available on request. Swatch chips ship with the sample kit.
Fabric catalogue: 50+ items in 280 / 295 / 300 cm widths, plus 200–250 cm options. Sunshine, semi-blackout and full blackout.
We will never compete with you
for your own customers.
We do not sell finished curtains into your market. We sell the core system that makes your finished curtain different.
A product line nobody else can quote
Eight patented opening methods, protected in 53 countries. Your sales team stops competing on price per square metre.
Your market stays yours
We do not chase your local end customers. Finished curtains exist only for samples, benchmark projects and end-user validation.
Built on what you already stock
Your fabric, your local size system, your assembly line and your install crews. The system adapts to you, not the other way round.
Not priced as a motor
You are buying a differentiated product line, time-to-market advantage and patent protection — not a commodity motor and plastic parts.
Numbers you can build on.
| Item | Value | Item | Value |
|---|---|---|---|
| Motor model | DVQ24AF/TD-2×0.6/40 | Rated voltage | 12 V DC |
| Torque / speed | 2 × 0.6 Nm · 40 rpm | Power / current | 16 W · 1.33 A |
| Motor length | 343 mm | Radio frequency | 433.92 MHz |
| Operating temp. | −20 °C ~ +65 °C | Max run per session | 6 minutes |
| Max size · 38 mm tube | 300 W × 350 H cm | Alt. max · 38 mm tube | 250 W × 400 H cm |
| Max size · 47 mm tube | 350 W × 350 H cm | Minimum size | 90 W × 80 H cm |
| Total depth | 8 cm tracked · 10 cm trackless | Install depth | ≥ 7 cm inside frame |
| Profile colours | Matte Black · White · Silver Ash · Coffee · Beige | Drive options | Plug-in · Li-ion · Li-ion solar |
| Fabric options | Sunshine · semi · full blackout | Size note | Max depends on fabric weight |
| Handsets | DD7662HK · DD6502 | Wall transmitters | DD3172HK · DD2152HK |
| Emitter channels | 15 channels, 433.05–434.79 MHz | Power options | DC731E · DC1277EB · DC1277EP |

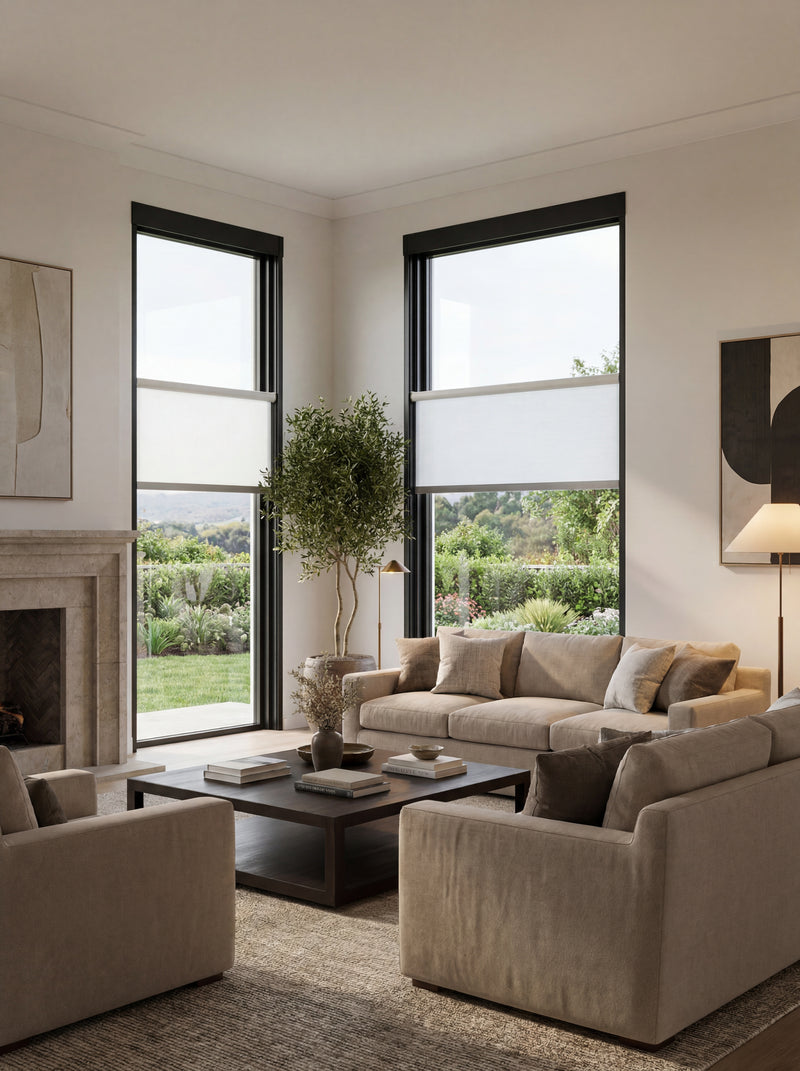

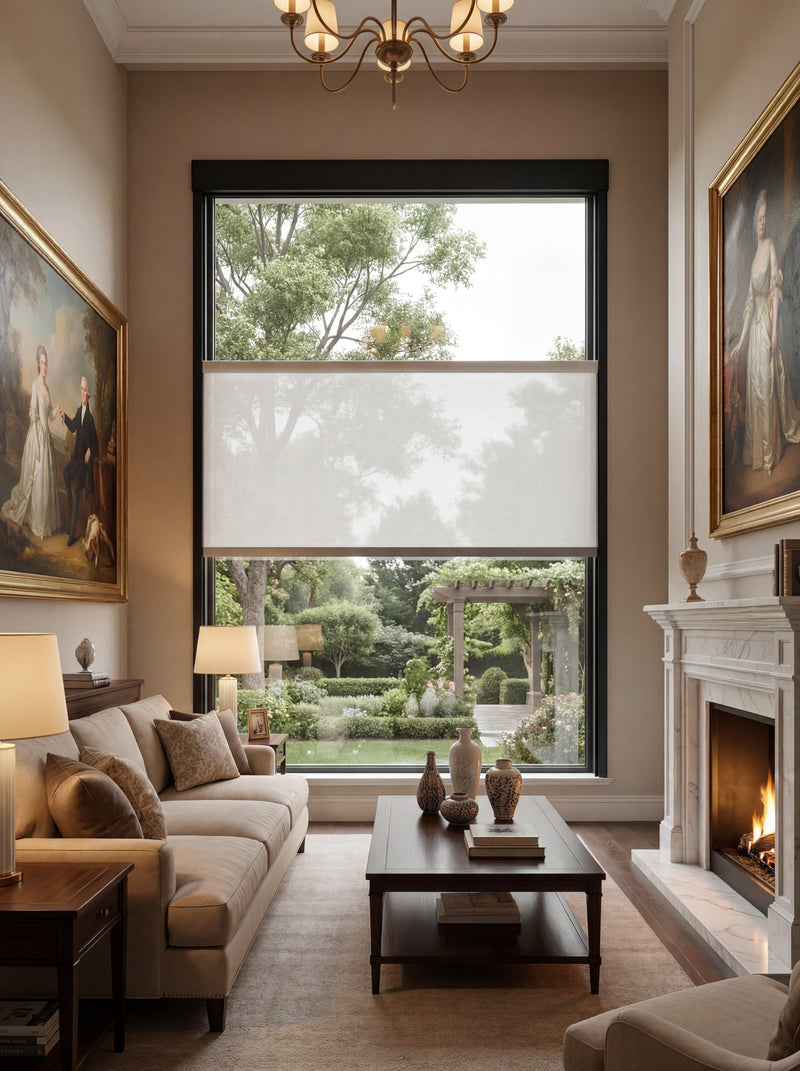

FINISHED REFERENCE

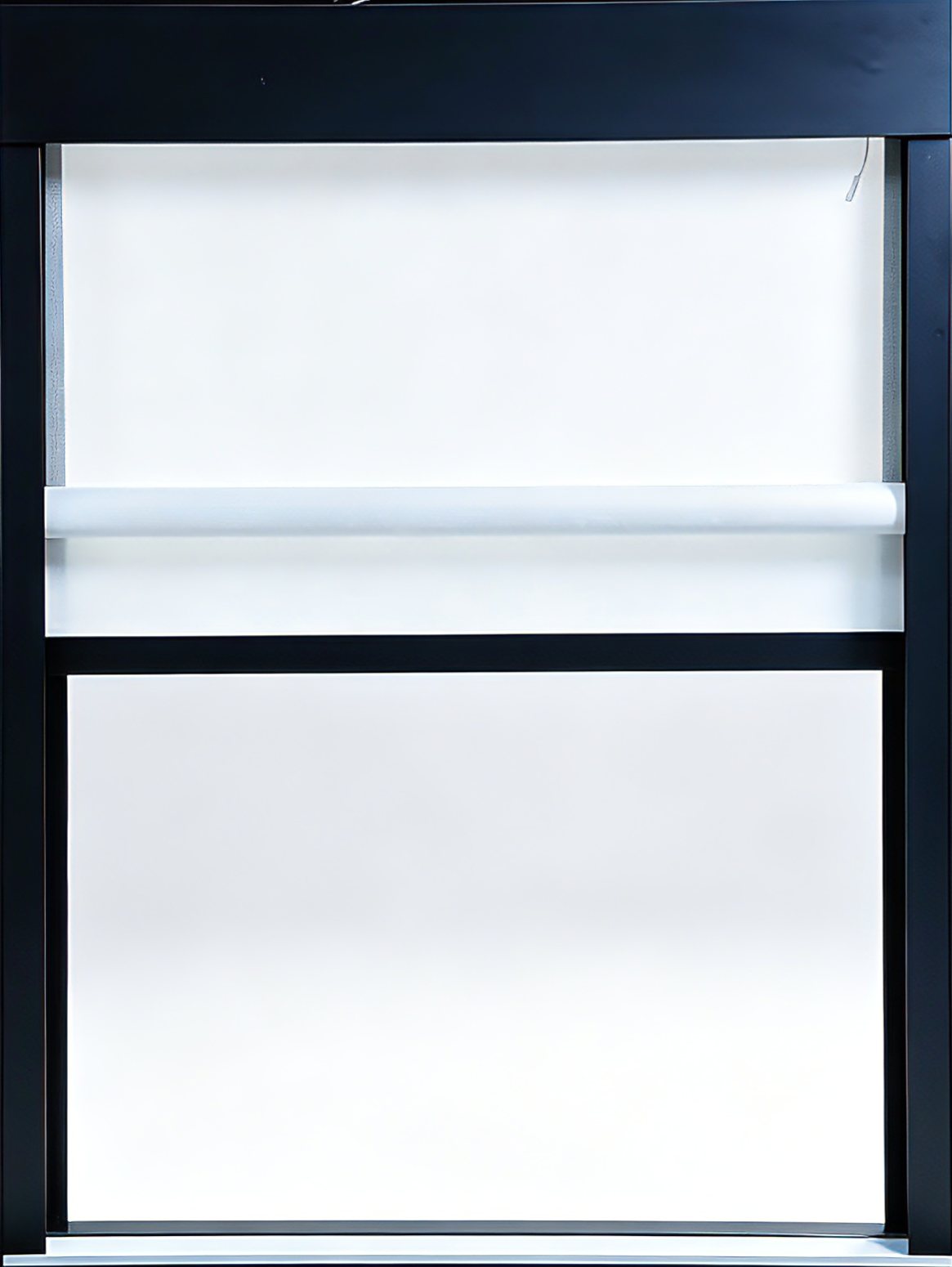

SYSTEM CLOSE-UPSix steps. No surprises.
See it in 15 s
A 20–40 s silent demo: upper shade, mid-hold, full drop, changing light zones.
Qualification
Country, channels, own assembly, annual volume, fabric and track supply, install team.
Paid sample
Paid, not free — freight on you. Refundable against your first order within 90 days.
Technical validation
Exploded view, size tables, assembly video, initialisation, motor interfaces, warranty scope.
Trial production
10–50 units. Assembly time, yield, install success rate, packaging, control compatibility.
Repeat & territory
After two paid orders, discuss regional or exclusive terms tied to real volume.
One public anchor.
Factory tiers on approval.
USD 199 / USD 238 is the published small-batch price and our value anchor. Volume factory pricing opens after qualification — we do not publish our lowest tiers.
| Order volume | Professional 3-Year | Professional 5-Year | Payment terms |
|---|---|---|---|
| 1 – 9 units | USD 199 | USD 238 | 100% prepaid |
| 10 – 49 units | On approval | On approval | 50% deposit |
| 50 – 199 units | On approval | On approval | 50% deposit |
| 200 – 499 units | On approval | On approval | 50% deposit |
| 500 – 999 units | On approval | On approval | 30–50% deposit |
| 1,000 + units | Annual agreement | Annual agreement | Forecast + credit review |
1% – 4% back, not off
500–999 units: 1%. 1,000–2,999: 2%. 3,000–4,999: 3%. 5,000+: 4% or a strategic agreement. Rebate beats an upfront discount — it rewards repeat buying.
Two compliant routes
Buy from a SHISHANG-authorised track maker, or produce locally under authorisation — NDA, drawings, first-article approval and batch traceability required.
53 patents. Four continents.
- North AmericaUS · CA
- EuropeEU · UK · ES
- AsiaCN · JP · KR
- Middle EastAE · SA
11,142,947 B1
Granted
11,692,393 B2
Granted
11,739,591 B2
Granted
Full patent schedule — country, number, holder, legal status and expiry — is provided under NDA together with the sample kit.
Three types of partner.
Roller shade & motorised curtain makers
Own assembly shop, existing fabric and aluminium capability, engineering clients or dealer network. Already selling motorised rollers but stuck in commodity competition. Around 5,000 units a year.
Distributors & system integrators
Window covering component wholesalers and shading integrators serving many small fabricators. Able to hold local stock, training and after-sales. Potential national or regional distributor.
Design studios & project contractors
Interior design firms, hotel / hospital / school / office contractors and smart-home integrators. Ideal for benchmark projects, not the first wave of volume purchasing.

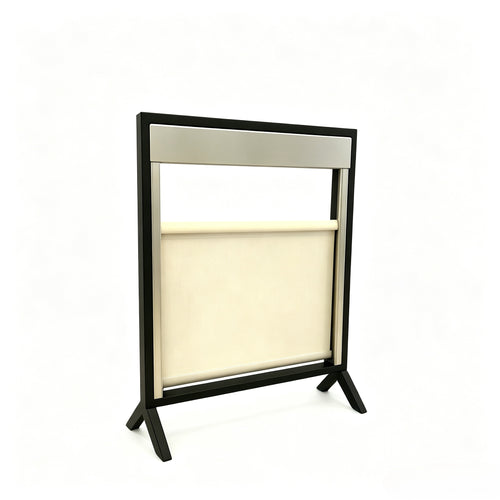

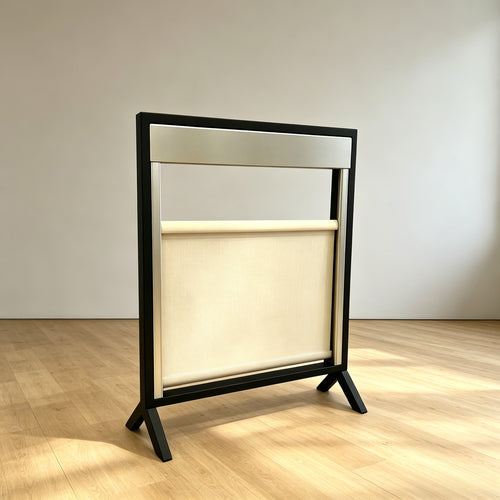

See it, touch it, then decide.
USD 249
Complete finished curtain: kit, motor, basic profiles and fabric, assembled. 3-year limited warranty. Freight, insurance and local duties at your cost.
USD 289
Same kit with 5-year limited warranty. Non-standard sizes, special fabrics and expedited production quoted separately.
Refunded against your first order
Within 90 days of delivery: first order reaching 50 units credits USD 100; reaching 200 units credits one full sample. Freight, duties and customisation fees are not credited. One sample credit per customer.
The questions we always get.
What is the MOQ?
10 units for trial production. Custom SKUs carry their own MOQ. Samples are single units and are not part of a retail policy.
What are the payment terms?
Samples: 100% prepaid, freight at your cost. First trial production: 50% deposit, balance before shipment. Credit terms are only discussed after a stable track record and with credit insurance or bank instruments in place.
Can we use our existing track?
The patented system cannot be assumed to fit arbitrary third-party track. Two compliant routes: purchase from a SHISHANG-authorised track maker, or produce locally under written authorisation with drawings, tolerances, first-article approval and batch traceability. Unauthorised track voids system warranty.
What exactly does the warranty cover?
Manufacturing defects in the motor, controller and patented structural parts under correct assembly, installation and use. It excludes customer-selected fabric, unauthorised track, measuring or assembly errors, overload, misuse and normal wear. Fulfilment is diagnosis plus repair or replacement parts — not automatic whole-unit replacement.
Can we get exclusivity?
Not at the start. The first two paid orders are non-exclusive. After two clean paid orders you may apply for exclusivity scoped to a defined region × channel, tied to an annual minimum of roughly 3,000–5,000 units, reviewed quarterly, with a first term of no more than 12 months. Exclusivity is earned by volume — not granted for a forecast.
How long are quotations valid?
USD quotations are valid for 30 days. Significant FX movement may trigger re-quotation. Every quotation states EXW, FOB, CIF or another agreed Incoterm, and freight at buyer's cost means international transport, insurance, customs clearance, duties and destination taxes are yours.
Fashion. Quality. Intelligence.
Simplicity.

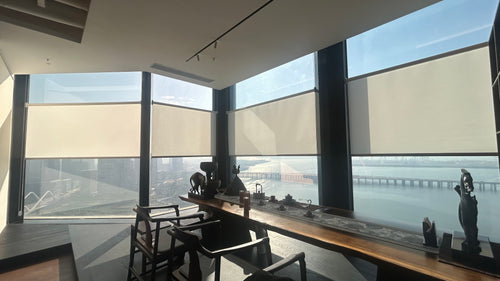

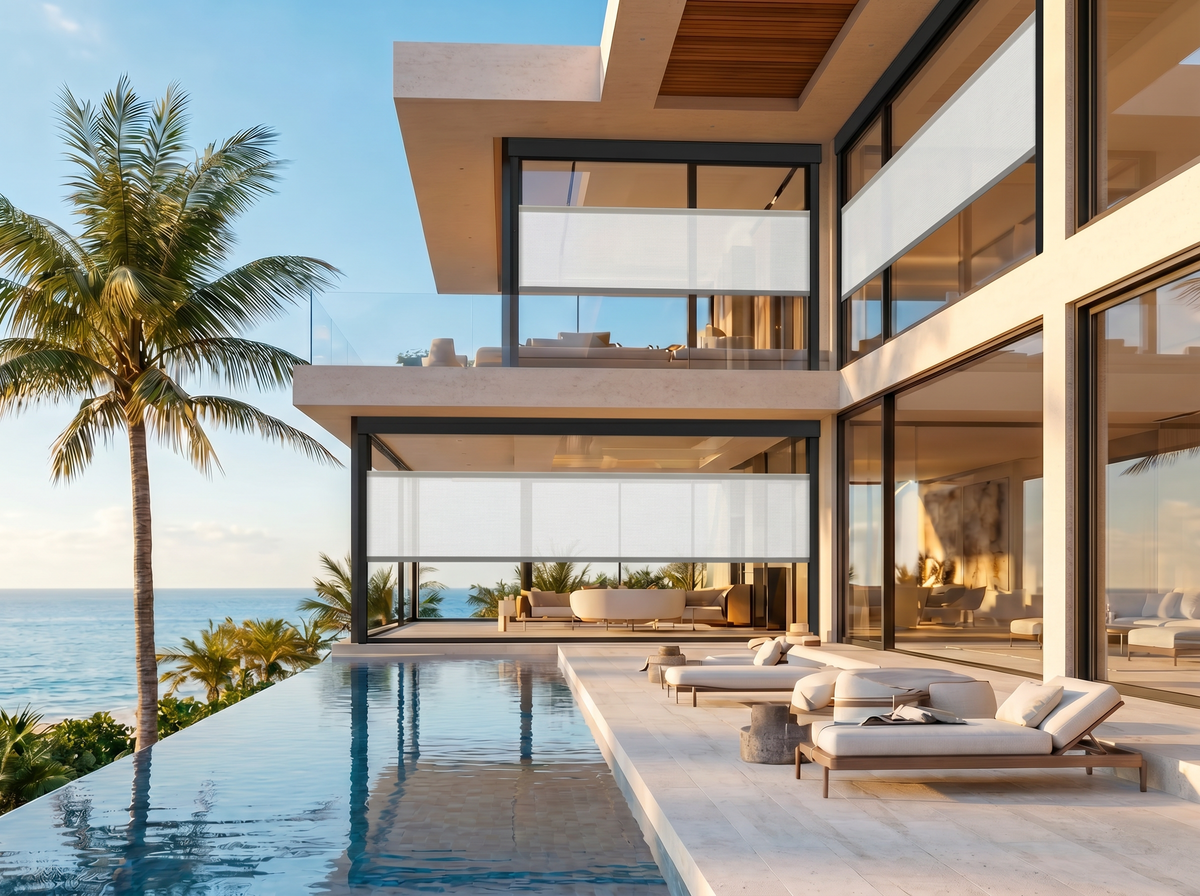

URBAN INSTALLATION
Our own plant, our own motor
Appearance, size and function can all be customised. Digital intelligent control links into modern networked scenarios. Eight opening and closing mechanical transmission structures, globally launched, protected by a patent portfolio.
